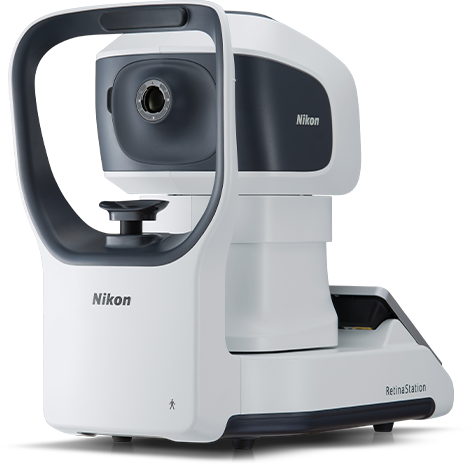

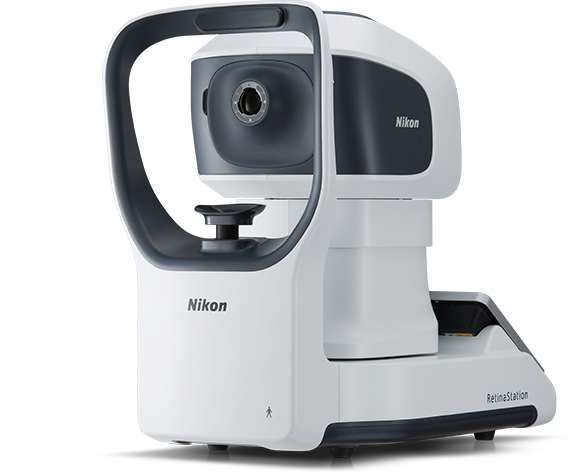

RetinaStationRetinaStation

The RetinaStation system is
a fully-automatic,
non-mydriatic 45° retinal imaging device
with an eye to the 3 smart features.
For practitioners, the new model is well thought-out in many ways.
They include ease of use, top-quality image capturing, stand-alone design.

RetinaStation01RetinaStation01

TREE "SMART"TREE "SMART"

We have come up with the RetinaStation brainchild with quality and versatility in mind.
Retinal diagnostic staff can achieve excellent images because the RetinaStation is here.

RetinaStation02RetinaStation02
  • SMART1SMART1
  • SMART1SMART1
  • SMART1SMART1

SMART1 FULL AUTO & SIMPLE OPERATIONSMART1 FULL AUTO & SIMPLE OPERATION

DETAILDETAIL

RetinaStation03RetinaStation03

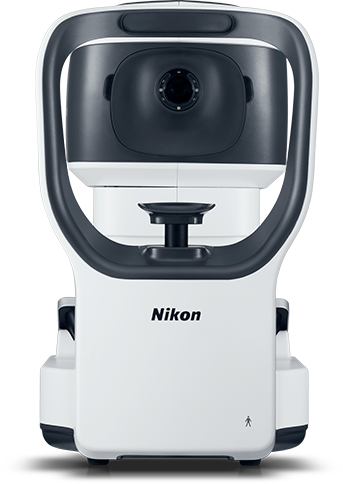

SMART1

The touch panel is large and eye-friendly. Functionality includes single-tap, as on a sensory tablet screen, for complete imaging and other diagnostic functions.

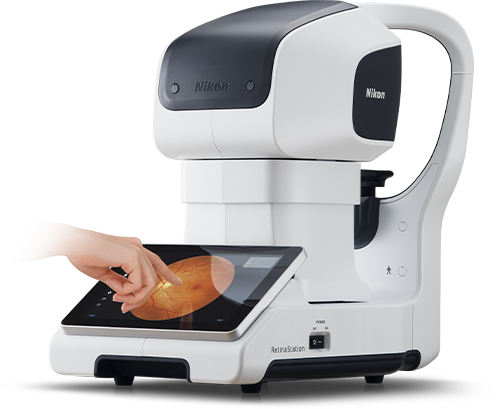

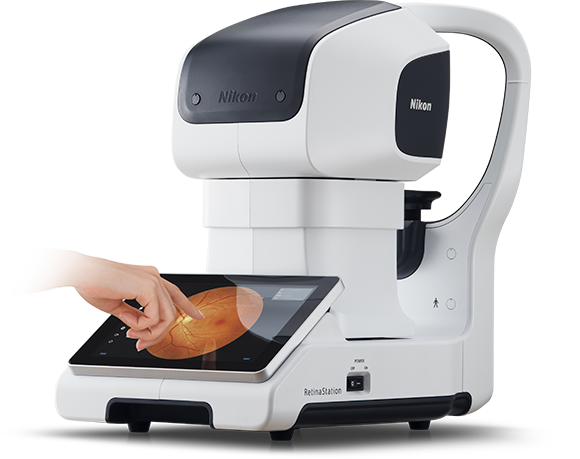

The RetinaStation is equipped with an easily-viewable 10.1” touch panel. A single tap allows you to check each of the eyes, to photograph its fundus and anterior segment, to create auto-montages from wide-angle images and for other functions. The system takes care of all the rest. Pinch to zoom in and out images as you do on tablets.

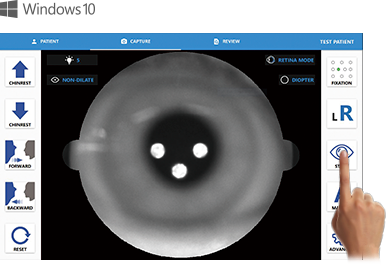

image01image01Just one tap for all photographing steps

image02image02Pinch-in and pinch-out as on touch panel

Close

SMART2 HIGH QUALITY IMAGINGSMART2 HIGH QUALITY IMAGING

DETAILDETAIL

RetinaStation04RetinaStation04

SMART2

The across-the-retina zone up to the periphery can be reliably rendered by the resolution as high as 12 million pixels.

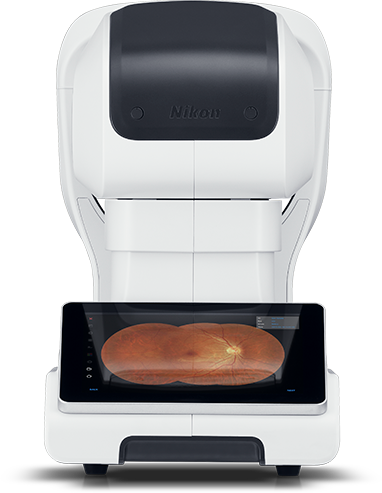

The RetinaStation with a high resolution of 12 million pixels is easy to use. Reliable rendition is notched up in usual imaging and also in enlargements and photo-montages. Sharp area-to-area images help increase diagnostic accuracy.

image03image03Photo Viewer: Enlarged view of full-auto-captured image

NormalNormal

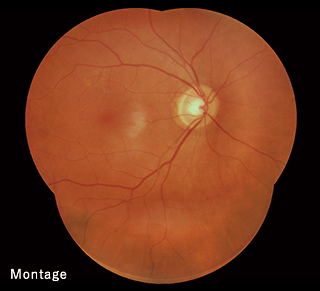

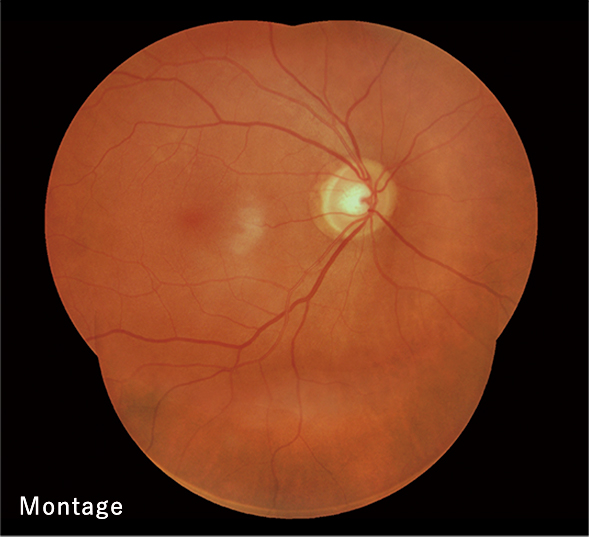

MontageMontage

Close

SMART3 WITH JUST ONE UNITSMART3 WITH JUST ONE UNIT

DETAILDETAIL

RetinaStation05RetinaStation05

SMART3

The on-board computer has the Windows 10 OS and dedicated software pre-installed. The self-contained system enables imaging as well as editing, and saves your desk space.

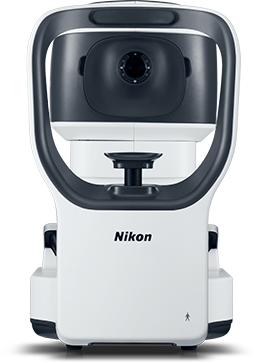

A viewer tool and other useful applications are pre-programmed on the RetinaStation computer (Windows 10 OS). The all-in-one computerized design provides you with everything for imaging and editing. There is no need to connect an external computer or other devices allowing you to save your desk space.

image04Connectable with a notebook,
print server and/or other devices.

Close

PATIENT-FRIENDLYPATIENT-FRIENDLY

Reducing burden on patients in eye exams

The RetinaStation non-mydriatic retinal imaging system needs no ocular instillation before exams. For imaging, ocular fixation can be flexibly positioned and light intensity adjusted in 10 levels to suppress glares. What’s more, the full-auto-shot function shortens exam time. The system is also configured for patients to feel psychologically secure, which means helping to reduce strains on patients during retinal exams.

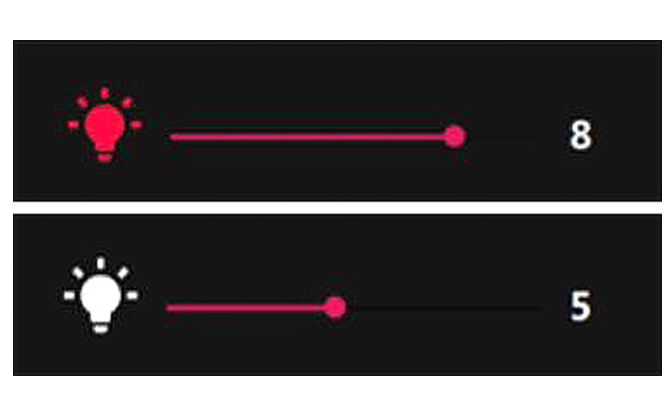

image05image05Lighting control: Imaging light intensity adjustable in 10 levels

PRODUCTPRODUCT

ProductRetinaStation
Function Value / Type Remark
Fundus image Non-mydriatic, color image
Field of view >= 45 degrees
Illumination for retina image (capture) White LED Flashes for capturing images
Cornea image (capture) White LED Flashes for capturing images
Illumination during alignment to patient’s retina NIR LED Central wavelength in the range of 735 – 850 nm
Focus diopter adjustment range -15 D to +10 D Without compensation lens
-30 D to -10 D or +5 D to + 30 D With compensation lens
Minimum pupil size 4 mm
Focus adjustment Auto / manual Split-image technique
Image sensor CMOS 12 megapixel
Z-ranging (working distance) 2 fiber dots
Working distance 25 mm from lens to cornea Accuracy : +/- 0.5 mm
Fixation Internal 10 points
General
Function Value / Type
Alignment Fully automatic 3D tracking
Alignment mode Full auto / auto / manual
Chin rest Motorized
Interface USB 2.0 port, LAN, HDMI
Input / output format Image format : JPEG, PNG, BMP, DICOM
Display 10.1” LCD monitor, touch panel
Operation range Front / back : 40 mm Left / right : 90 mm Up / down : 30 mm
Chin rest range Up / down : 70 mm
Dimensions Depth : 495 mm Width : 288 mm Height : 495 mm
Weight 17 kg
  • *The USB interface is used for connecting a USB mass storage device.
RetinaStation06RetinaStation06
  • * The official name of Windows® is Microsoft® Windows® Operating System.
  • * Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and / or other countries.
  • * Windows® 10 is a product name of Microsoft Corporation in the United States.
    Please note that Windows® 10 is described as Windows 10 in this web site.
